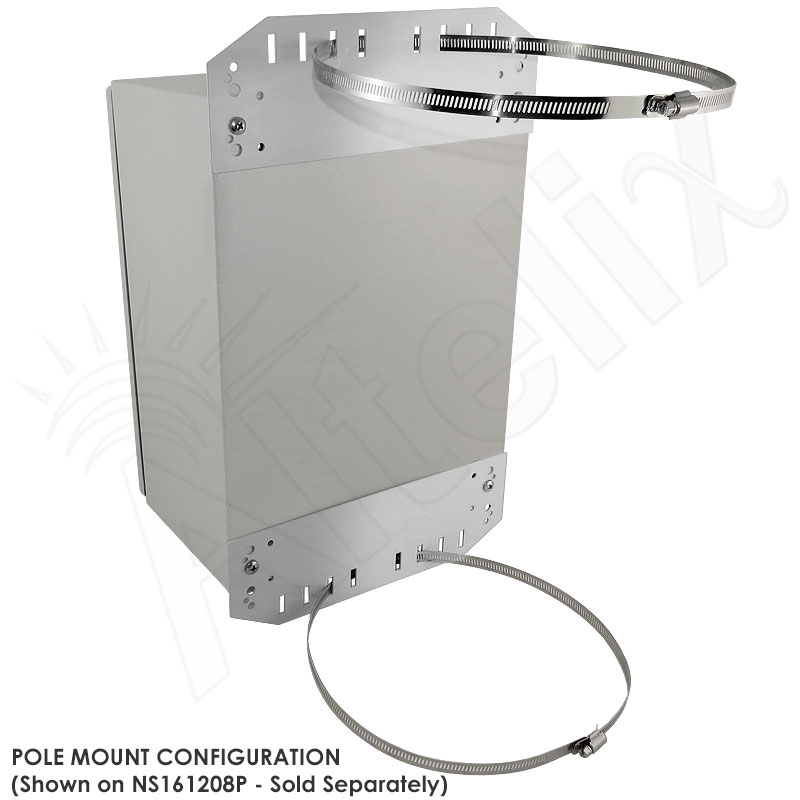

The Altelix NMKX-300-08 Stainless Steel Pole Mount / Flange Mount Kit easily attaches to the rear of our NF141206, NF141208, NFC161208 and NS161028 series NEMA enclosures. These heavy-duty stainless steel brackets allow the enclosures to be mounted to poles 2.0 to 9.5 inches (50.8 to 241.3mm) in diameter. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated. The mounting brackets are constructed from 0.08″ (2mm) thick stainless steel for all-weather applications.

Optional adjustable stainless steel bands can also be purchased for the following pole sizes (see the accessory section below):

• Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
• Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
• Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter

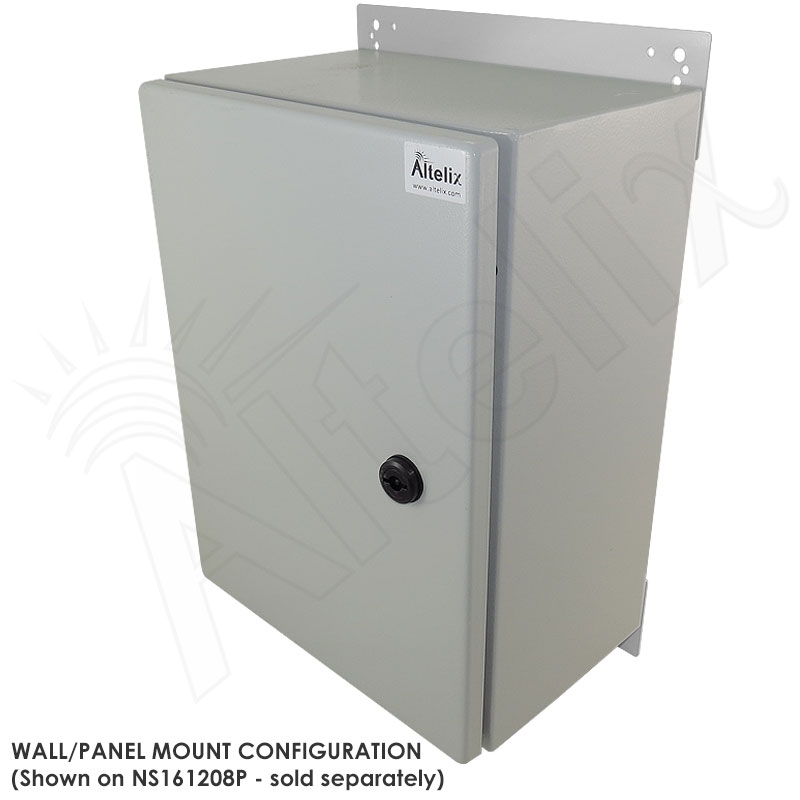

The brackets can also be reversed to provide a continuous steel mounting flange along the edge of the enclosure.

The NMKX-300-08 kit includes (2) stainless steel mounting brackets, (2) stainless steel adjustable bands, and mounting hardware.

The NMKX-300-08 is for use with the following enclosures:

• NF141206 Series FRP Enclosure
• NF141208 Series FRP Enclosure
• NFC161208 Series FRP Enclosure
• NS161208 Series Steel Enclosure
