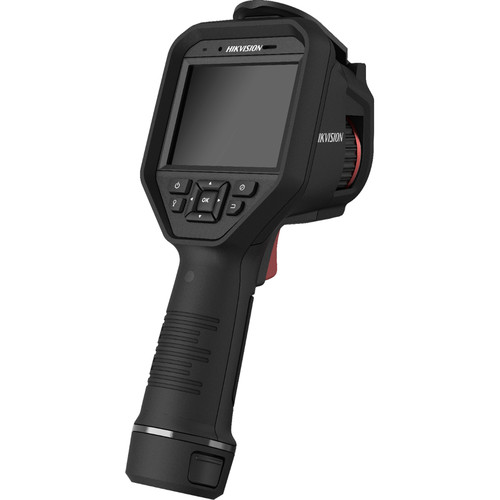

The DS-2TP21B-6AVF/W Thermographic Handheld Camera from Hikvision is designed for temperature measurement applications where heat leaks and other abnormal changes in temperature need to be identified. It combines thermal and optical images into a fusion display. This unit uses an uncooled focal plane array to capture 160 x 120 thermal resolution video. The camera’s 6.2mm fixed thermal lens delivers a 25 x 18.7° field of view. Additionally, the camera is equipped with an 8MP optical sensor. An integrated 3.5″ LCD touchscreen has a 640 x 480 resolution.

This device features Wi-Fi connectivity. An included lithium-ion battery delivers up to five hours of battery life.

• Designed for temperature measurement applications where heat leaks and other abnormal changes in temperature need to be identified
• Combines thermal and optical images into a fusion display
• NETD ≤40 mK
• 8MP optical sensor
• 640 x 480 video resolution (optical sensor)
• 3.5″ LCD touchscreen
• Supports live view on computers, mobile devices, or an external monitor
• Supports voice and text comment, audio intercoms, color highlight alarms, and audio alarms
• Color palettes in optical mode include black hot, white hot, red hot, rainbow, ironbow, fusion, and rain
• 2.74 MRAD instantaneous field of view
• Up to 4x thermal digital zoom
• Dismountable and rechargeable lithium-ion battery
