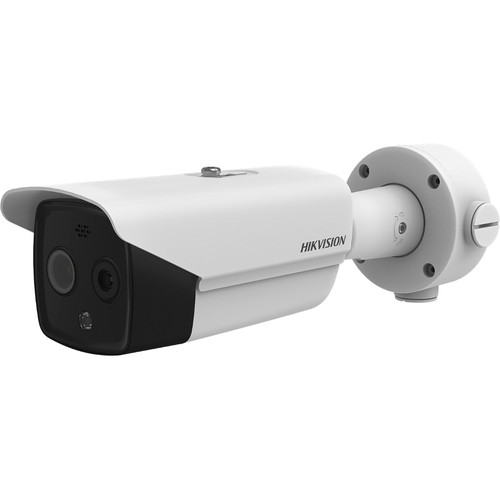

The DS-2TD2617B-6/PA Outdoor Thermal & Optical Network Bullet Camera from Hikvision uses a vanadium oxide uncooled focal plane array to capture 160 x 120 resolution video that can be upscaled to 320 x 240 resolution. The camera’s 6.2mm fixed thermal lens delivers a 25 x 18.7° field of view. Additionally, the camera is equipped with a 1/2.7″ progressive scan CMOS sensor and an 8mm optical lens to capture 2688 x 1520 resolution video at 30 fps. IR illumination provides up to 131′ of visibility in low-light conditions.

Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This bullet camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated enclosure that is suitable for outdoor use.

• Thermal and optical camera equipped with a thermal sensor and a GPU to run video content analysis (VCA) algorithms
• Delivers accurate temperature measurements in real-time
• Suitable for use in airports and areas that require stringent security measures
• NETD ≤40 mK
• 4MP optical sensor
• IR cut filter for day and night functionality (optical module)
• IR illumination up 131′ for low-light applications (optical module)
• Adaptive automatic gain control (AGC), 3D-DNR, and Digital Detail Enhancement (DDE)
• H.265, H.264, and MJPEG video codecs
• 2.74 MRAD instantaneous field of view
• Up to 32 users with 3 host levels (admin, operator, and user)
• Up to 20 channels in simultaneous live view
• 1 x 100M self-adaptive RJ45 Ethernet
• 1 x RS-485
• 1 x BNC video output
• Audio input and output
• Two alarm inputs and outputs
• Reset button
• Compatible with Internet Explorer 9 or higher, Chrome 31 to 44, Firefox 30 to 51, Safari 5.02 or higher (macOS), iOS, Android, iVMS-4200, and Hik-Connect
• CE, FCC, and cUL certified
• TVS 6000V lightning, surge, and transient voltage protection
